We provide bends of bending radius 3D, 5D, 6D, 8D, 10D and 12D depending on the pipe diameter.
We provide bending for various types of Pipes like Seamless, L Saw, E.R.W., Helical etc.,
We provide bending all types of steel pipes, including Carbon Steel, Alloy Steel, Stainless Steel etc.,

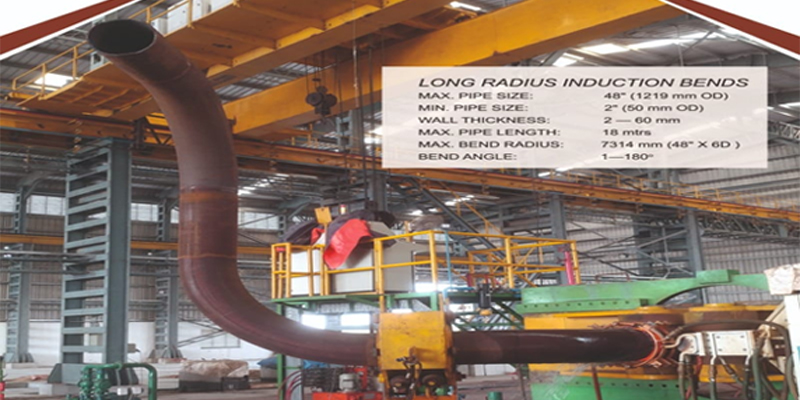

| MAX. PIPE SIZE | 48” (1219 mm OD) |
| MIN. PIPE SIZE | 6” (168.3 mm OD) |
| WALL THICKNESS | 6 – 60 mm |
| MAX. PIPE LENGTH | 18 mtrs |
| MAX. BEND RADIUS | 7314 mm (48” X 6D ) |
| MIN. BEND RADIUS | 700 mm |
| FEED SPEED | 1—150 mm/ min |
| MIN. BEND ANGLE | 1—120° |
| MAX. ARC LENGTH | 11485 mm |
